Case study

Andover Project

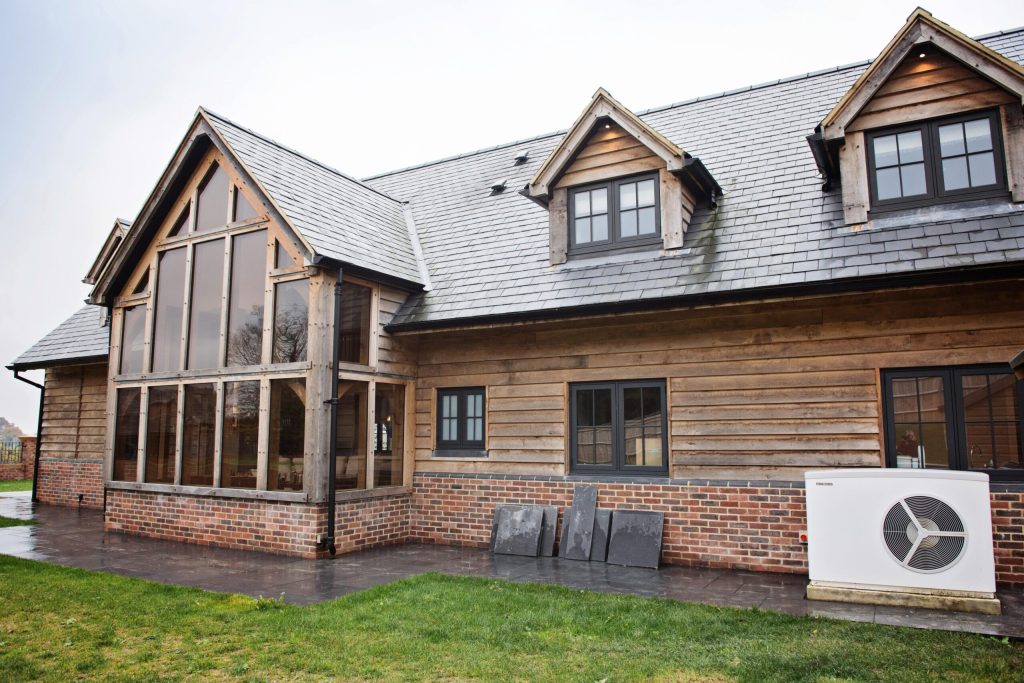

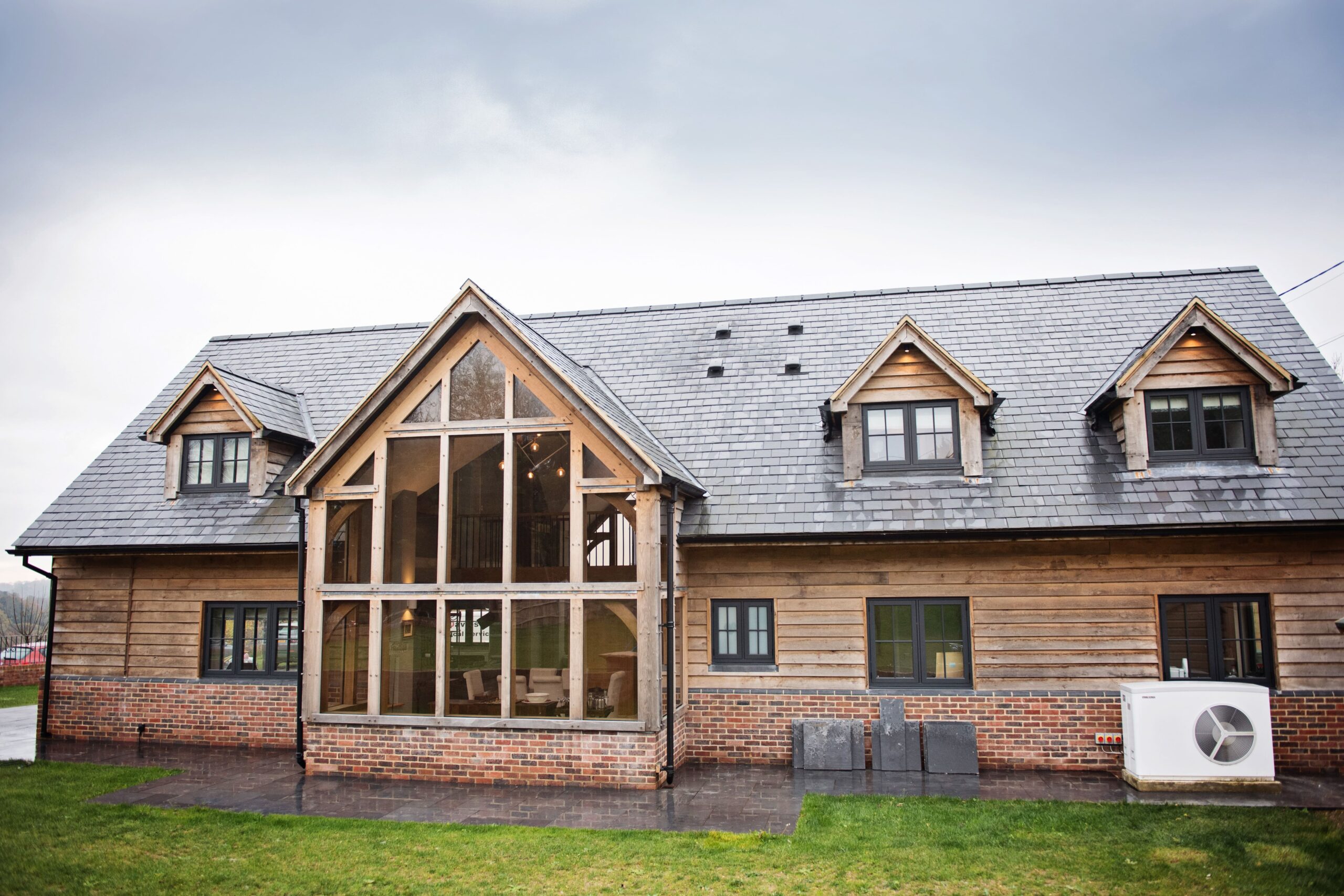

Timber-clad house with a large glazed gable

Stephen was building his own home in a hamlet between Andover and Newbury. We designed and installed a Stiebel Eltron air source heat pump with room-by-room controls, underfloor heating downstairs and radiators upstairs, and did all the plumbing.

At a glance

LocationHamlet between Andover and Newbury, Hampshire
PropertyCustomer’s own home, his first build project
Heat pumpStiebel Eltron WPL 25 air source, for heating and hot water
ControlsStiebel Eltron Easytron individual room controls, connected to the heat pump
Heat emittersUnderfloor heating downstairs, radiators upstairs
Our workHeat loss calculations, heat pump installation, underfloor heating, radiators and all plumbing, including three bathrooms, a downstairs cloakroom and WC, kitchen and utility room

The brief

This was Stephen’s first project, and it was for his own home. He wanted a company he could rely on for expert support, good-quality products and a proper installation.

He needed a heat pump that would provide both heating and hot water, with good performance and energy efficiency.

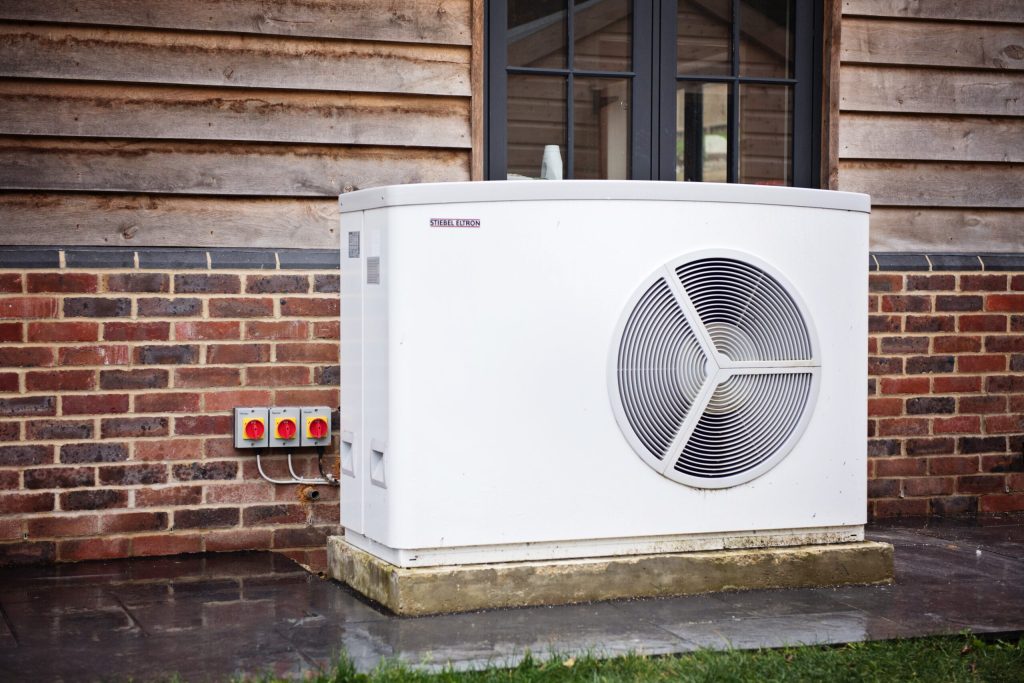

Stiebel Eltron air source heat pump installation near Andover

The air source heat pump we designed

We spent time with Stephen to understand what he wanted, then carried out heat loss calculations for the house. These showed that a Stiebel Eltron WPL 25 air source heat pump would give more than enough heat for the property, efficiently and quietly.

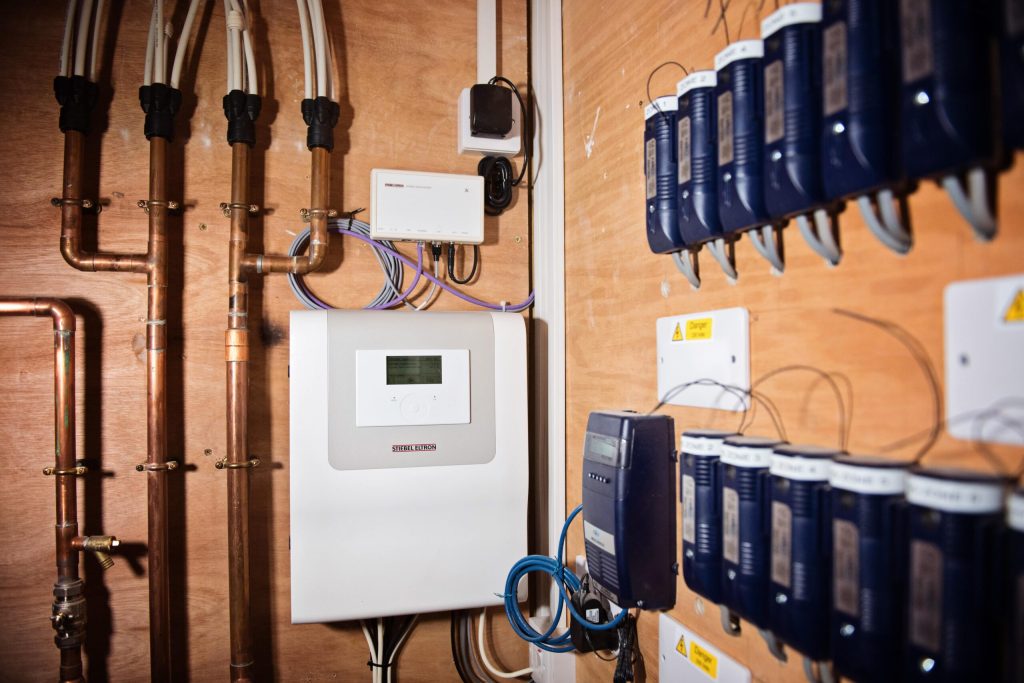

We added Stiebel Eltron Easytron individual room controls, which connect directly to the heat pump, to help the system run more efficiently. Underfloor heating went in throughout the ground floor, with radiators upstairs.

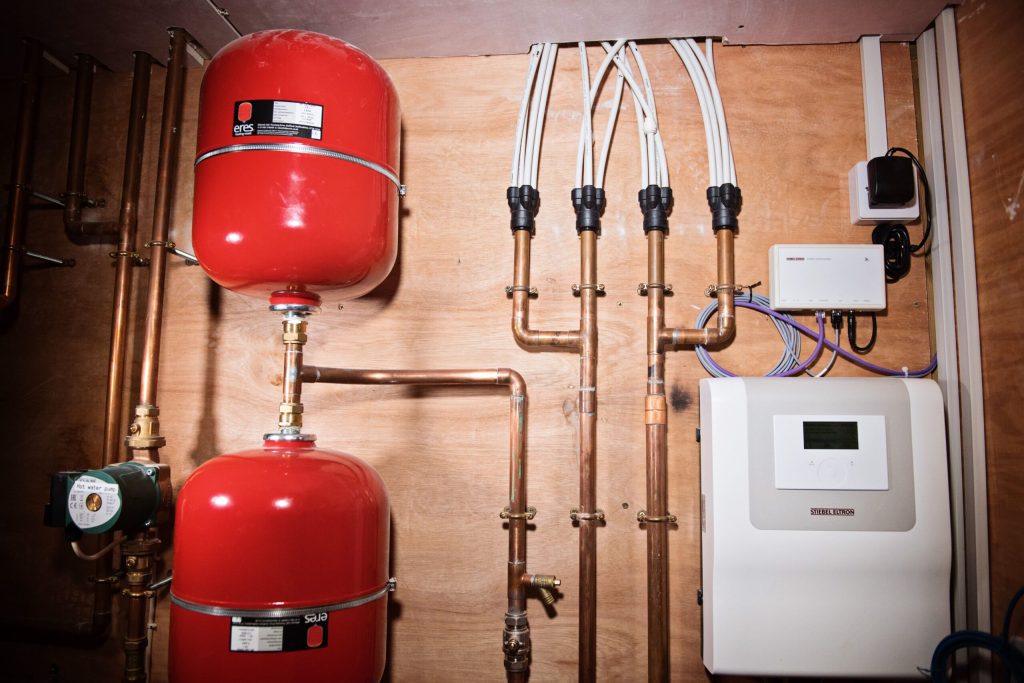

We also did all the plumbing in the house: three bathrooms, a downstairs cloakroom and WC, the kitchen and the utility room. We were on hand throughout the project to answer questions and give advice.

The outcome

Stephen trusted us from the start and went with our recommendations. He has already asked us to help with his next project, which we’re looking forward to.

Room-by-room controls with a heat pump

Individual room controls let each room have its own temperature and timings, so bedrooms can be cooler than living areas, and rooms you don’t use as often aren’t heated more than they need to be.

With a heat pump, the controls need to work with the heat pump rather than against it. Because the Easytron system connects directly to the heat pump, the heat pump can respond to what the rooms actually need.

Frequently asked questions

Why is a heat loss calculation important?

It tells us how much heat each room loses on a cold day, so we can size the heat pump, radiators and underfloor heating correctly. Too small, and the house won’t get warm enough. Too big, and the heat pump switches on and off more often and runs less efficiently. A room-by-room heat loss calculation is also part of the MCS standards that certified installers follow.

Is an air source heat pump noisy?

Modern air source heat pumps are designed to be quiet, and the WPL 25 was chosen partly for this. Where the unit goes matters too, both for your comfort and your neighbours’, so we plan its position as part of the design.

Can I have underfloor heating downstairs and radiators upstairs?

Yes. This is a common set-up. The system is designed so that both get water at the right temperature, with radiators sized to heat each room at heat pump temperatures.

Can you do the plumbing as well as the heat pump?

Yes. On projects like this one, we can take on the heating and plumbing together, which means one team is responsible for how the whole system works.
